Palisade Fence

Palisade Fence is a high-security steel fencing system made from strong vertical pales fixed to horizontal rails and posts. Classified into D-section and W-section types, it can be supplied with pointed, rounded, or triple-pointed tops to deter climbing and intrusion. Standard heights range from 1.8 m to 3.6 m, with hot-dip galvanized or powder-coated finishes for corrosion resistance and long service life. Palisade Fence is widely used for industrial sites, warehouses, schools, railways, airports, highways, government facilities, and utility plants, providing a durable, anti-climb, and highly effective perimeter protection solution....

Jinkaiyi is a professional manufacturer of Palisade Fence, a strong and attractive steel fencing system widely used for perimeter security. Originally popular in the UK, Palisade Fence is now applied globally due to its modern design, high strength, and anti-climb performance. It serves as a reliable alternative to brick walls or heavy fencing, combining both protective and decorative functions for industrial, commercial, and residential projects.

Material and Processing

Palisade Fence is manufactured from high-quality steel sheet, hot-dip galvanized steel, cold-rolled steel, or hot-rolled steel. The surface treatment includes galvanizing, powder coating, or PVC coating, providing excellent corrosion resistance and long-term durability in outdoor environments.

Types of Palisade Fence

  • D Type Palisade Fence:
    Thickness: 3.0 mm (general), 3.5 mm (security), 4.0 mm (special).
    Common height: 1.2–3.0 m, width 1.8–2.35 m.

  • W Type Palisade Fence:
    Thickness: 2.0 mm (general), 2.5 mm (security), 3.0 mm (special).
    Common height: 1.8–2.4 m, width 1.8–2.35 m.

Pale Head Options

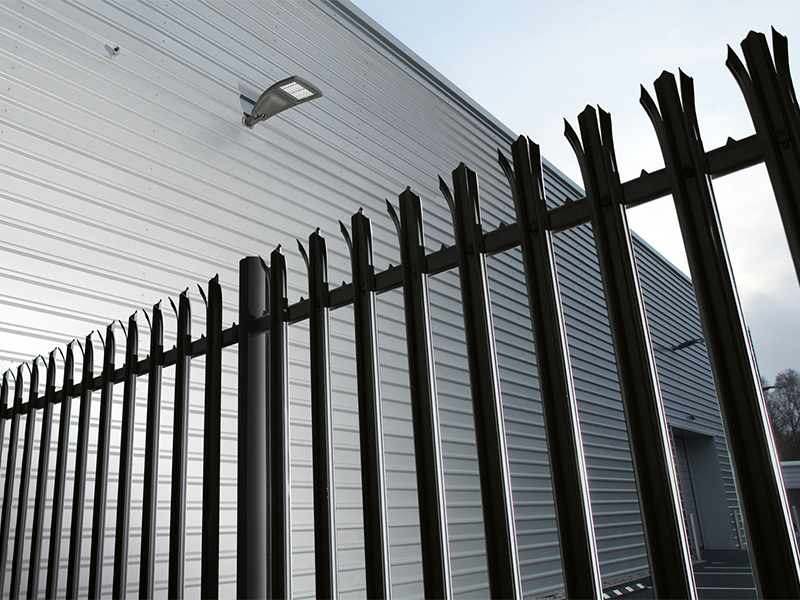

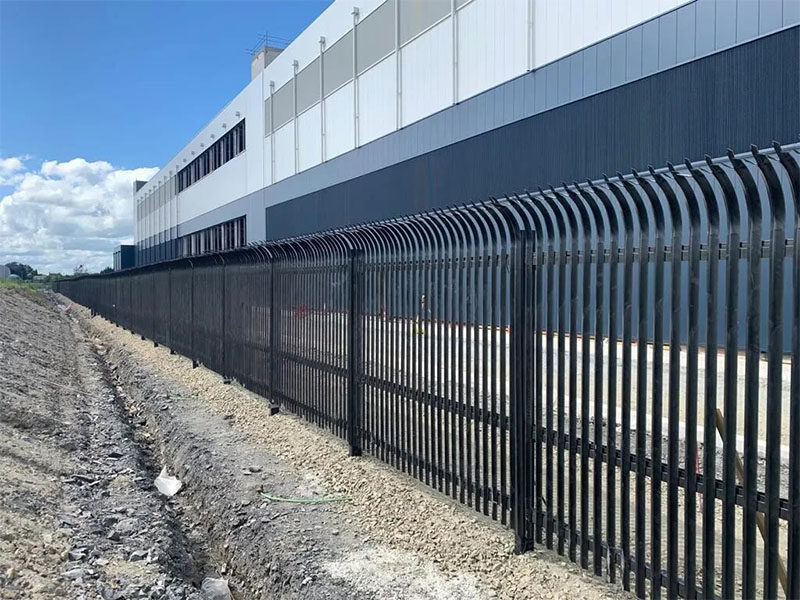

Available in square top, single pointed, triple pointed, round top, and round & notched top designs. Triple pointed pales are commonly used in high-security sites to prevent climbing.

Panel Specifications

  • Standard panel width: 2.75 m

  • Each panel consists of 17 pales with D or W profile

  • Fixed with 8 mm bolts and nuts

  • Heights: 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.1 m, 2.4 m, and 3.0 m

  • Pale thickness: 2.0 mm – 4.0 mm depending on type and security level

Features

  • High strength and rigidity with anti-climb design

  • Corrosion resistance with galvanizing or powder coating

  • Multiple color options for decorative integration

  • Easy to transport and install without terrain restrictions

  • Suitable for adding barbed wire or razor wire for enhanced protection

Applications

Palisade Fence is widely applied in factories, warehouses, airports, railways, highways, schools, government buildings, military sites, power stations, and residential areas. It provides excellent perimeter security while maintaining a modern and professional appearance.
