3D Mesh Fence

3D Mesh Fence, also known as V-bend welded wire fence, is a modern and durable security fencing system made from welded steel wires with V-shaped bends that add rigidity and strength. Classified by surface treatment, it is available in hot-dip galvanized, powder-coated, and PVC-coated finishes, with wire diameters typically 4–6 mm and mesh openings 50 × 200 mm. Fence heights range from 1.2 m to 2.5 m, making it suitable for a wide range of uses. 3D Mesh Fence is widely applied in residential areas, schools, parks, highways, factories, warehouses, and gardens, offering both protection and aesthetic appeal....

Jinkaiyi is a professional manufacturer of 3D Mesh Fence, also called V-bend welded fence, curved mesh fence, or 3D panel fence. This modern fencing system features welded steel panels reinforced with V-shaped curves, which enhance stability and strength while maintaining an attractive appearance. Designed for durability, 3D Mesh Fence is widely used in residential, commercial, industrial, and public security applications.

Material and Surface Treatment

3D Mesh Fence panels are made from high-quality low-carbon steel wire, processed by galvanization and finished with powder coating or PVC coating. The coating thickness is typically 100–120 microns, ensuring excellent resistance to corrosion, weather, and UV radiation. Standard colors include green (RAL6005), gray (RAL7016), black (RAL9005), and custom RAL options.

Panel Specifications

  • Mesh Opening Sizes: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 55 × 200 mm, 75 × 150 mm

  • Wire Diameters: 3.0 mm, 4.0 mm, 4.5 mm, 5.0 mm, up to 6.0 mm

  • Panel Heights: 0.6 m – 3.0 m (common sizes 2.0 m, 2.4 m, 3.0 m)

  • Panel Widths: 2.0 m – 3.0 m (standard 2.5 m and 2.9 m)

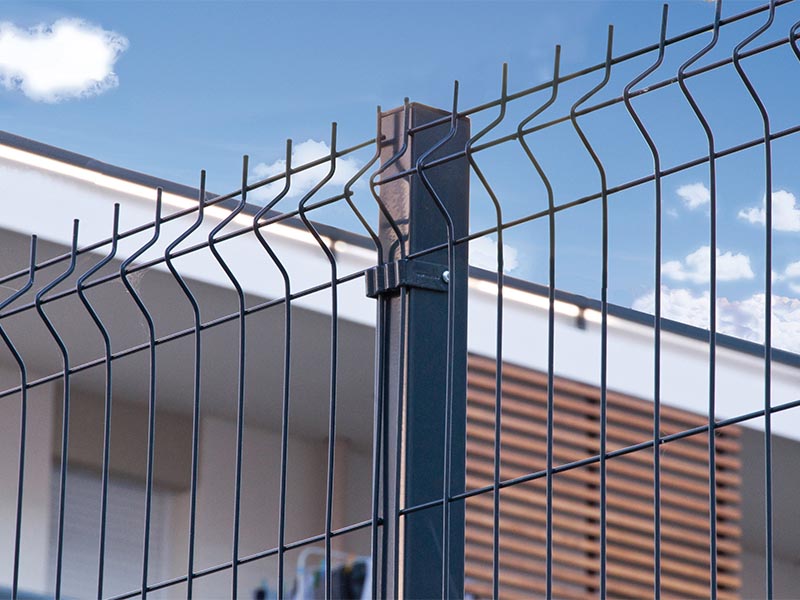

Post Specifications

  • Round Post: Ø 48 × 1.5/2.0 mm, Ø 60 × 1.5/2.0 mm

  • Square Post: 50 × 50 mm, 60 × 60 mm, 80 × 80 mm

  • Rectangular Post: 40 × 60 mm, 40 × 80 mm, 60 × 80 mm, 80 × 100 mm

  • Finish: hot-dip galvanized or galvanized + powder coating

  • Accessories: steel brackets, clamps, screws, and optional security extensions

Gates and Accessories

To complement the 3D Mesh Fence, we provide swing gates and sliding gates in single or double options. All gates are galvanized and powder-coated for durability. Accessories include steel brackets, base plates, and angled tops for barbed wire or razor wire installation, enhancing security.

Features

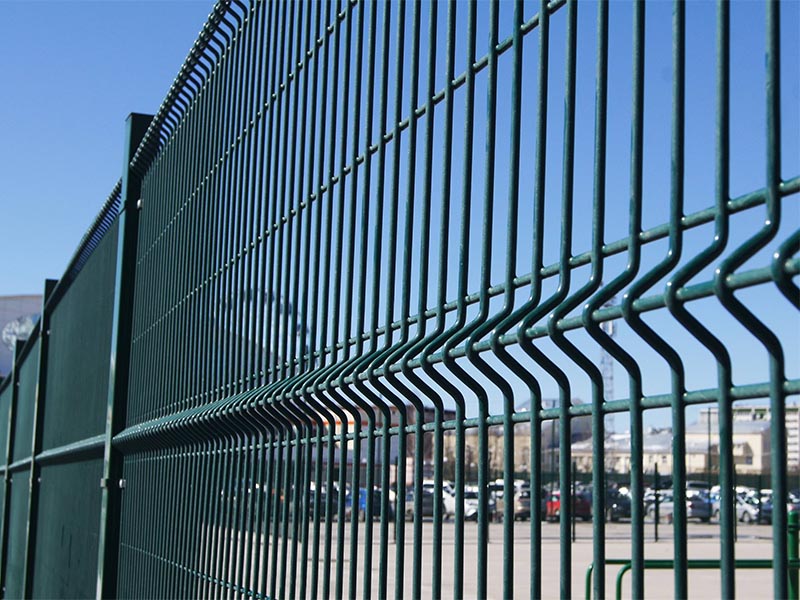

  • High rigidity with V-bend reinforcements

  • Corrosion and UV resistance with durable coatings

  • Attractive design blending with the landscape

  • Easy installation with modular panels and posts

  • Cost-effective with long service life

Applications

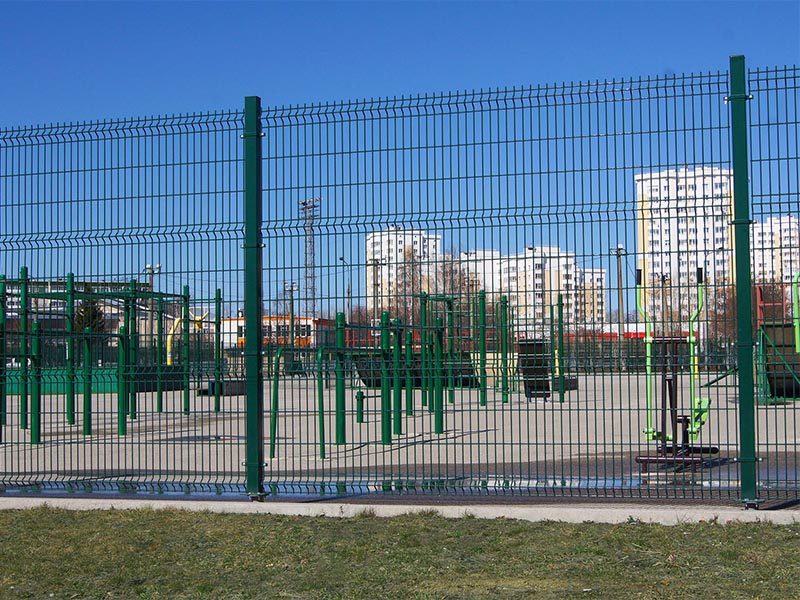

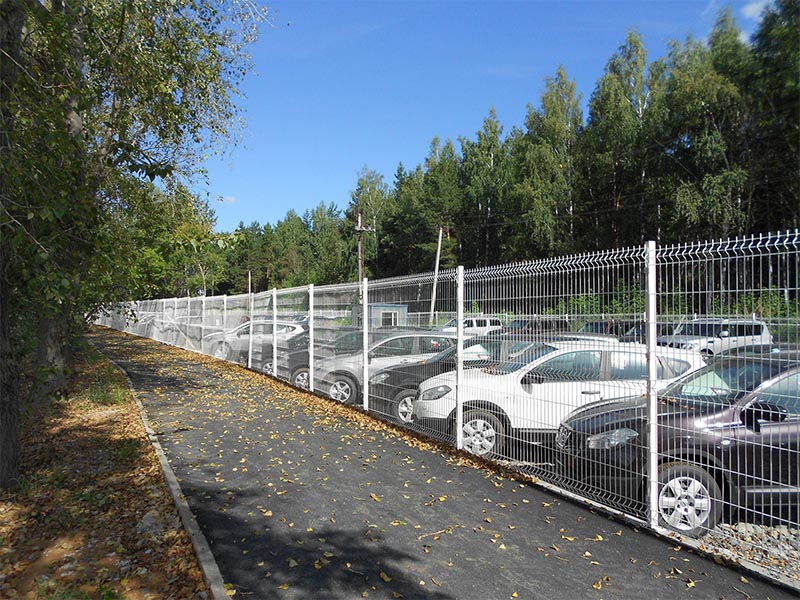

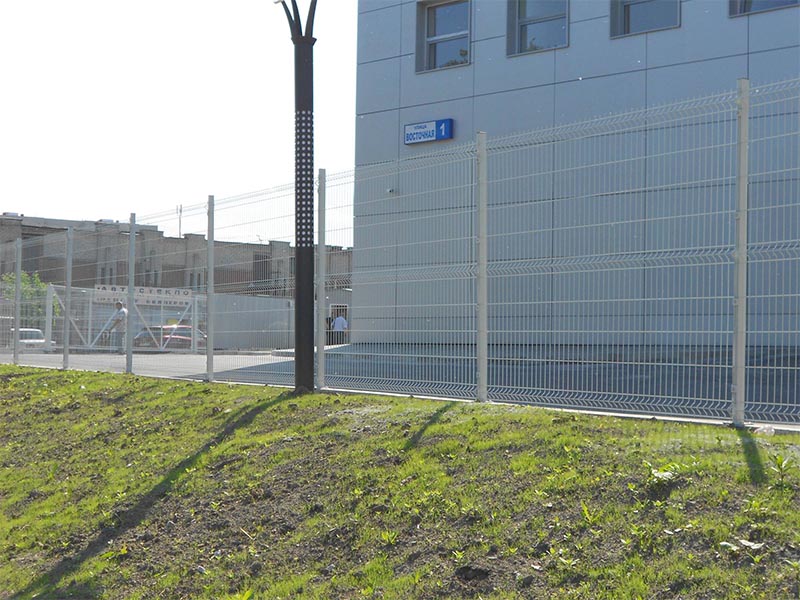

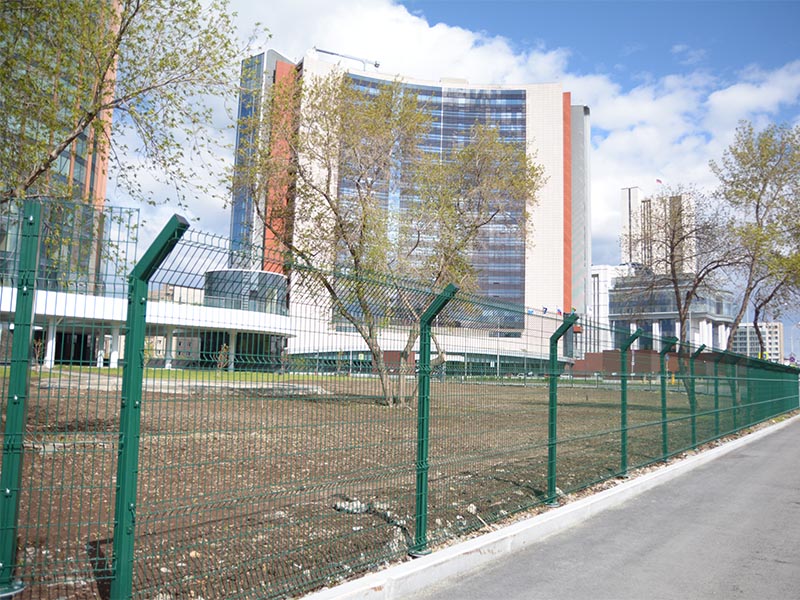

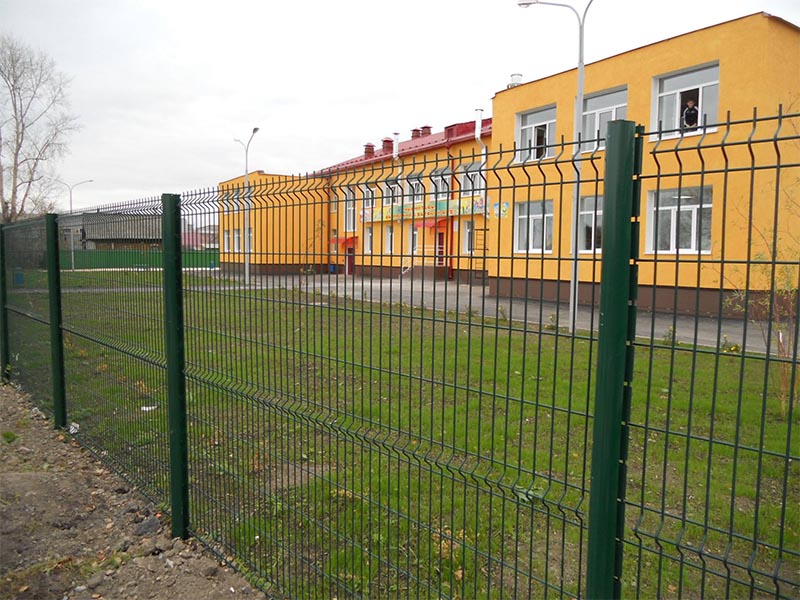

3D Mesh Fence is widely applied in residential gardens, schools, parks, sports fields, industrial sites, highways, airports, warehouses, and public facilities. Its combination of strength, visibility, and modern appearance makes it ideal for both security and decorative fencing.

Table-1: 3D curved security welded fence height and post
Fence height Panel size (height × width) Fence Post (height × size × thick )
2.0 m 2007 mm × 2515 mm 2700 mm × 80 × 80 × 2.5 mm
2.4 m 2400 mm × 2515 mm 3100 mm × 80 × 80 × 2.5 mm
3.0 m 2997 mm × 2515 mm 3800 mm × 80 × 80 × 2.5 mm
3.6 m 3607 mm × 2515 mm 4500 mm × 100 × 100 × 3.0 mm
4.2 m 4204 mm × 2515 mm 5200 mm × 100 × 100 × 4.0 mm
4.5 m 4496 mm × 2515 mm 5500 mm × 100 × 100 × 5.0 mm
5.2 m 5207 mm × 2515 mm 6200 mm × 120 × 120 × 5.0 mm
6.0 m 6000 mm × 2515 mm 6900 mm × 120 × 120 × 5.0 mm
