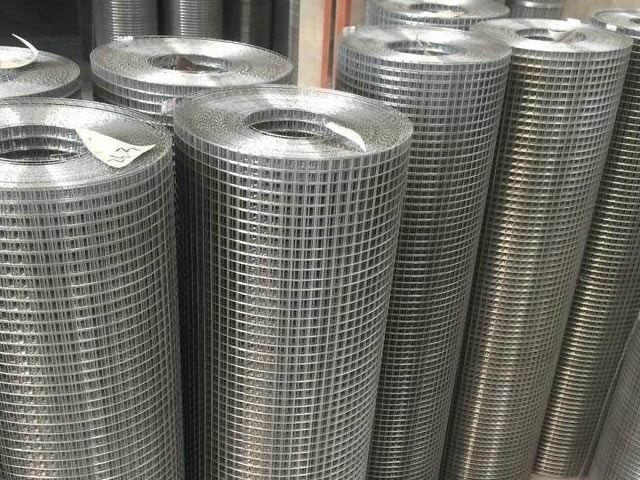

Stainless Steel Welded Wire Mesh
Stainless Steel Welded Wire Mesh is a strong, corrosion-resistant material manufactured by welding stainless steel wires into precise square or rectangular grids. Classified by material grade, it is commonly available in SS304, SS304L, SS316, and SS316L, offering excellent strength and durability. With mesh openings from 25 × 25 mm to 100 × 100 mm and wire diameters 1.0–6.0 mm, it is widely applied in industrial screening, food processing, construction reinforcement, security fencing, machine guards, partitions, and architectural decoration....
Jinkaiyi is a professional manufacturer of Stainless Steel Welded Wire Mesh, produced from high-quality grades including SS302, SS304, SS304L, SS304HC, SS316, and SS316L. The mesh features strong welding spots, a flat surface, and uniform openings, ensuring durability and reliability in demanding environments.
Material and Properties
Stainless Steel Welded Wire Mesh is manufactured from corrosion-resistant stainless steel wire, providing anti-oxidation, acid resistance, alkaline resistance, and high tensile strength. Its stable structure guarantees long service life with minimal maintenance.
Mesh Opening Sizes
Common mesh sizes include 25 × 25 mm, 30 × 30 mm, 50 × 50 mm, 75 × 75 mm, and 100 × 100 mm, suitable for both light-duty and heavy-duty applications.
Wire Diameter Range
Standard wire diameters range from 1.0 mm to 6.0 mm, allowing for flexibility in strength and weight according to project requirements.
Panel Dimensions
Typical panel sizes are 1.0 m × 2.0 m, 1.2 m × 2.4 m, 1.5 m × 3.0 m, and 2.0 m × 3.0 m. Custom dimensions are available to meet specific needs.
Applications
-
Industrial Use: machine protection, cable and pipe support, equipment cages, ventilation covers
-
Construction: earth surface stability, concrete reinforcement, fencing panels
-

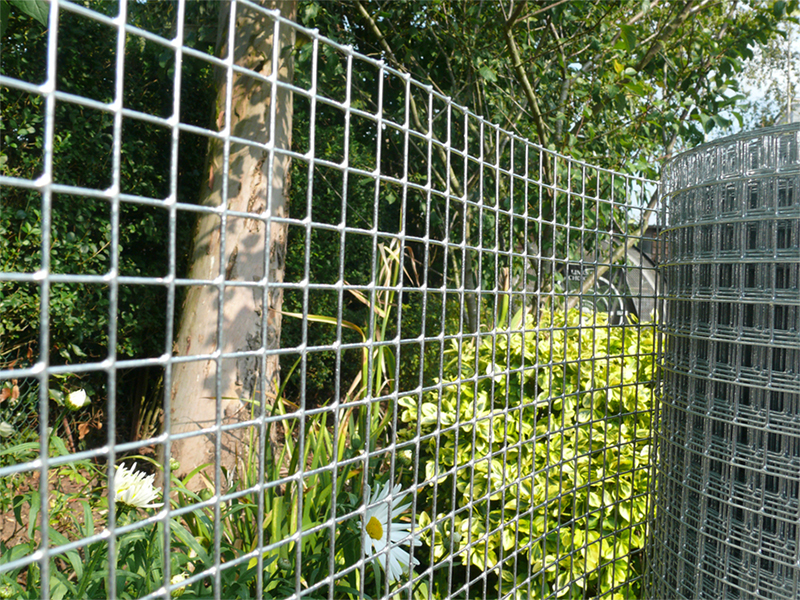

Agriculture: goat and horse fencing, farm and livestock enclosures
-
Civil Projects: pedestrian barriers, transport hubs, isolation fencing for public spaces
-
Mining & Petroleum: safety partitions and structural reinforcement
-
Food & Medicine: hygienic processing equipment, drying racks, and filtration systems
| Stainless Steel Welded Wire Mesh: | ||
| Opening | Wire Diameter <BWG> | |
| In inch | In metric unit (mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
