Barbed Wire

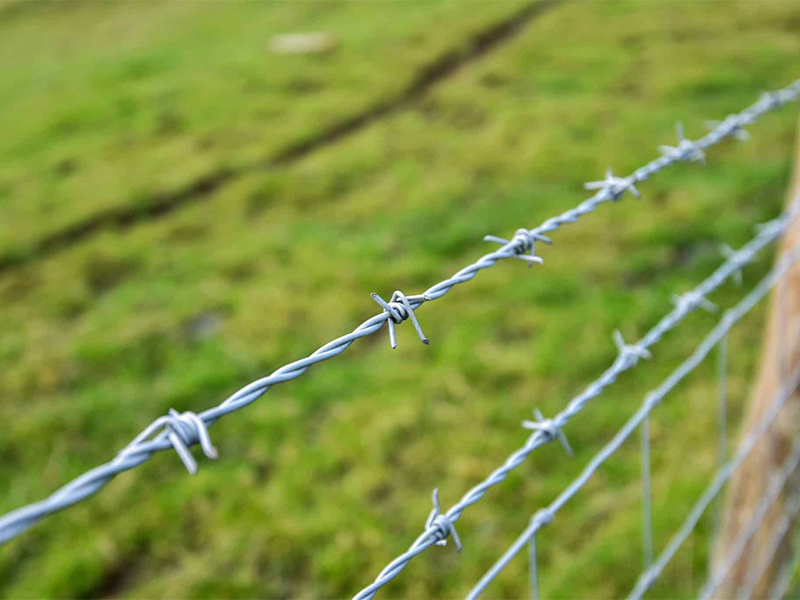

Jinkaiyi is a professional manufacturer of Barbed Wire, producing both galvanized and PVC coated types. Designed with sharp barbs twisted onto high-tensile wire, Barbed Wire offers strong security, durability, and cost-effectiveness. It is widely used for agricultural, residential, and high-security fencing projects.

Types of Barbed Wire

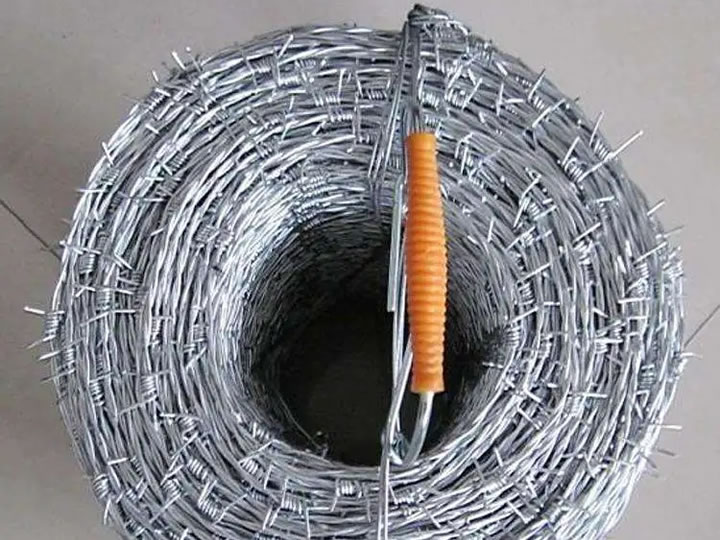

• Single Strand Barbed Wire: Economical and lightweight, suitable for general applications where moderate protection is required.

• Double Strand Barbed Wire: Formed with two line wires twisted together, providing higher tensile strength and resistance to cutting, ideal for heavy-duty uses such as prisons, military zones, and borders.

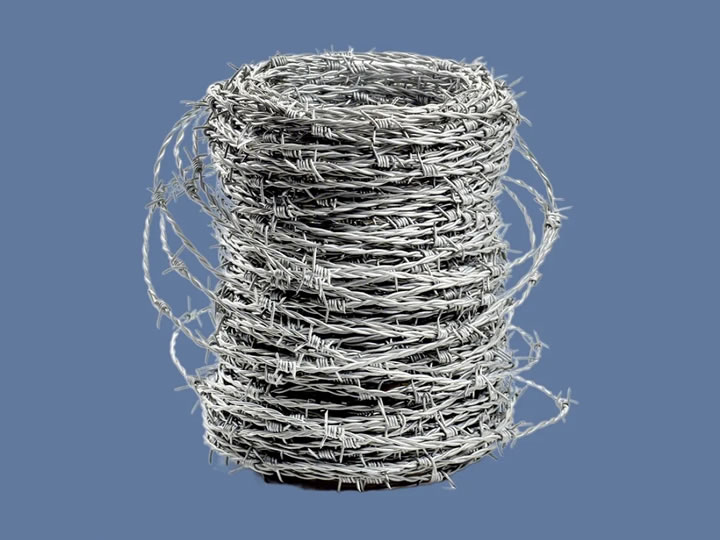

• Galvanized Barbed Wire: Zinc-coated for excellent rust resistance and long service life.

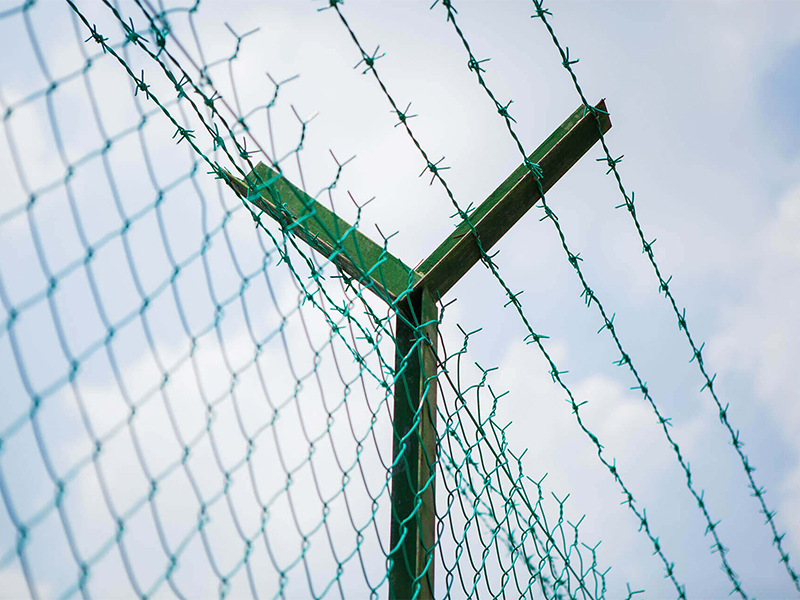

• PVC Coated Barbed Wire: Available in colors such as green, blue, and yellow, offering weatherproof protection and improved appearance.

Wire Diameter and Barb Spacing

Common wire diameters range from 1.6 mm to 2.5 mm (BWG 12–15).
Barb spacing is available in 3", 4", 5", and 6" (76–150 mm), allowing different security levels.

Specifications

• 12 × 12 BWG: 6.0–7.6 m per kg depending on barb spacing

• 13 × 14 BWG: 8.8–10.7 m per kg depending on barb spacing

• 15 × 15 BWG: 13.8–17.5 m per kg depending on barb spacing

• Other gauges: Available on request

Features of Barbed Wire

• Sharp barbs provide strong deterrence against intruders

• High stability, rigidity, and tensile strength

• Resistant to acid, alkali, corrosion, and harsh climates

• Available in single twisted, double twisted, and traditional twisted patterns

• Long-lasting performance with low maintenance

Applications

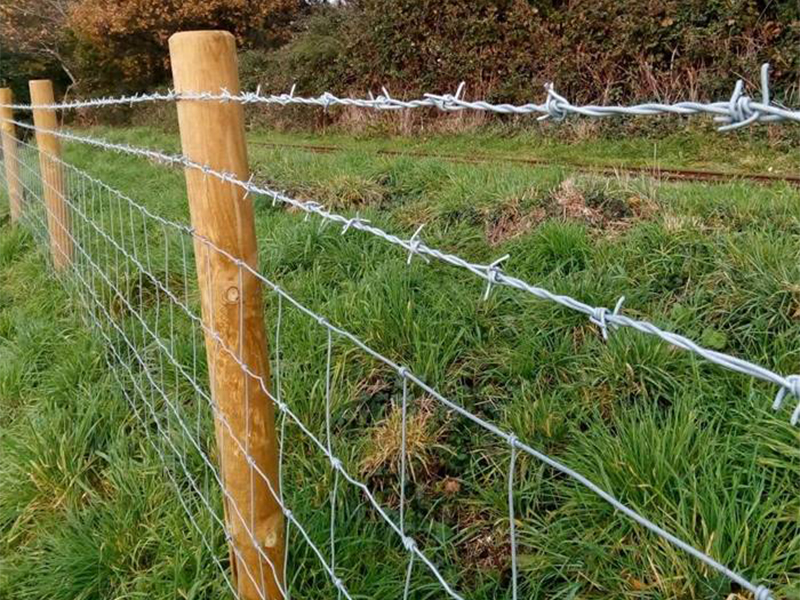

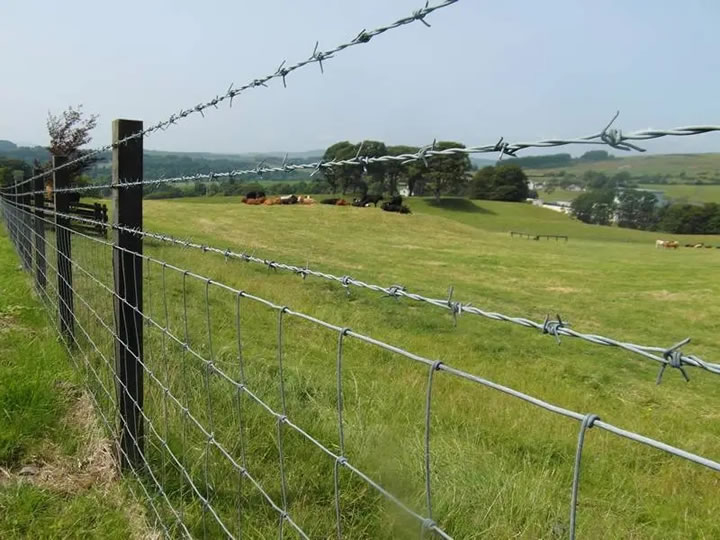

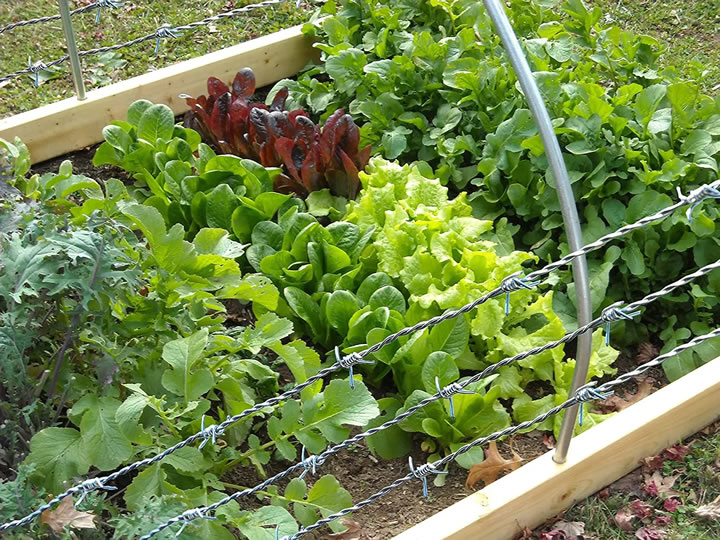

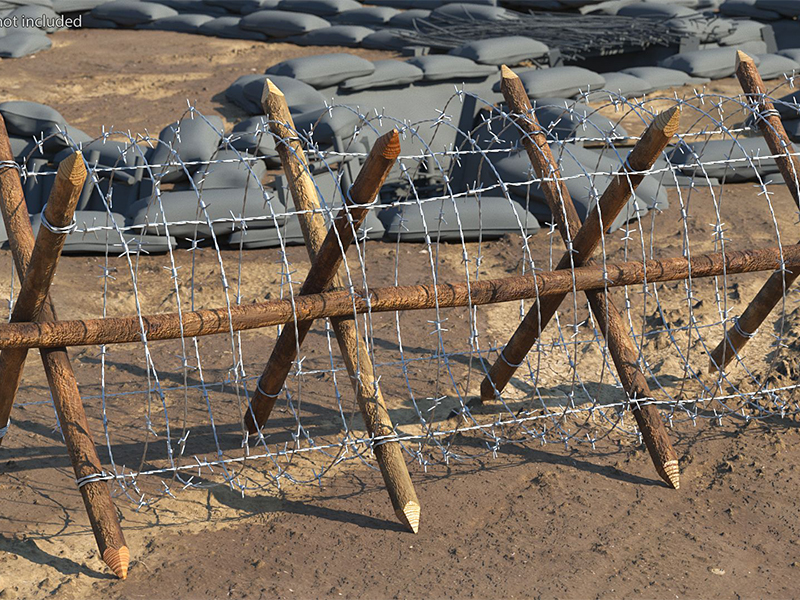

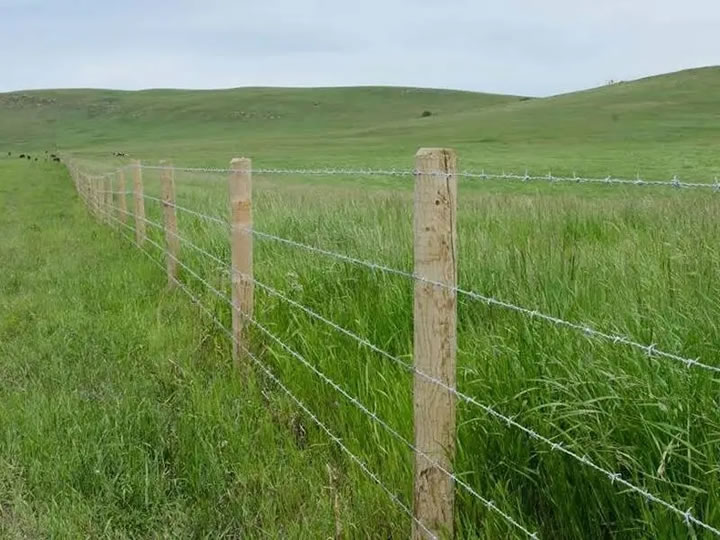

Barbed Wire is widely used for farm fencing, grassland protection, orchards, railways, highways, airports, national defense, prisons, and private property boundaries. It is often combined with chain link or welded mesh fences to increase security and reduce intrusion risks.

Packing Information

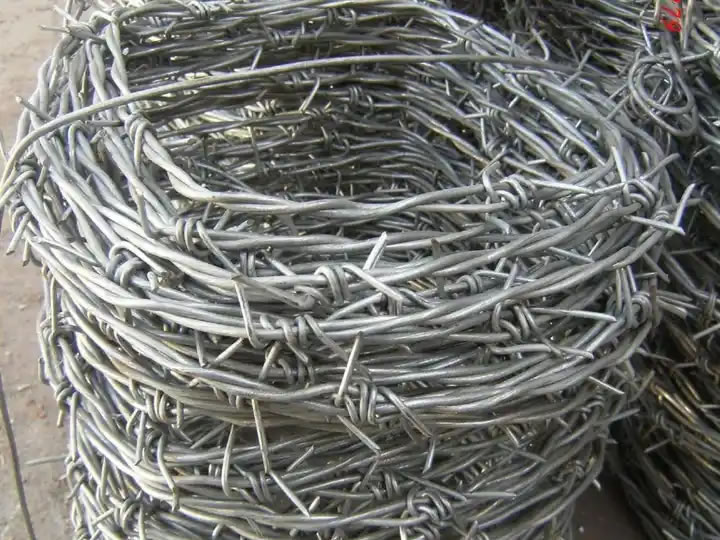

Barbed Wire is supplied in coils, wrapped with plastic inside and hessian or woven bags outside, ensuring safe handling and transport.
