Wire Mesh Fence

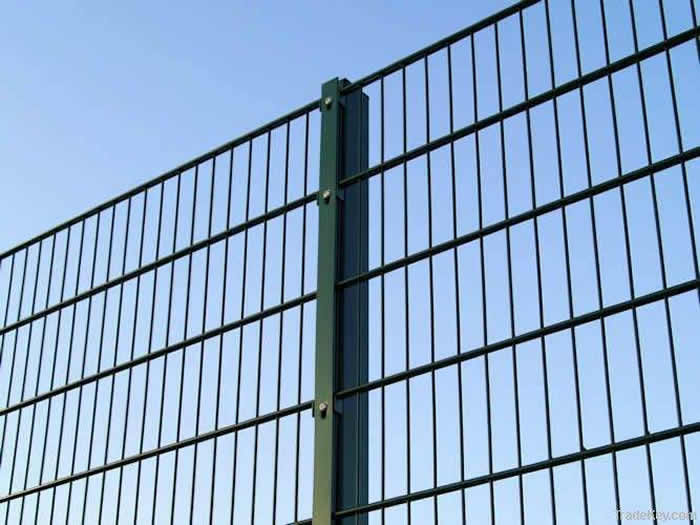

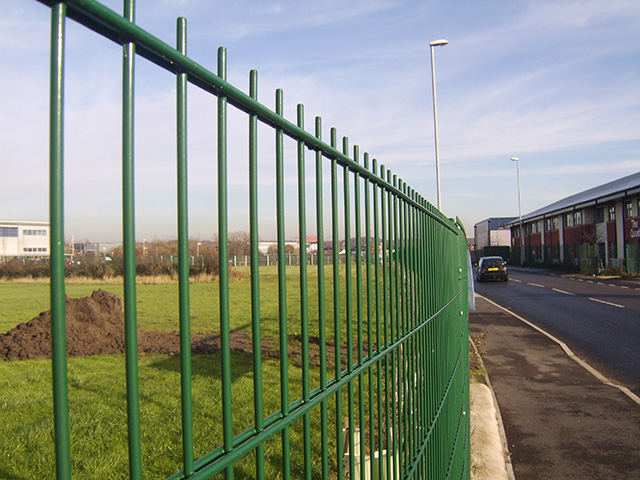

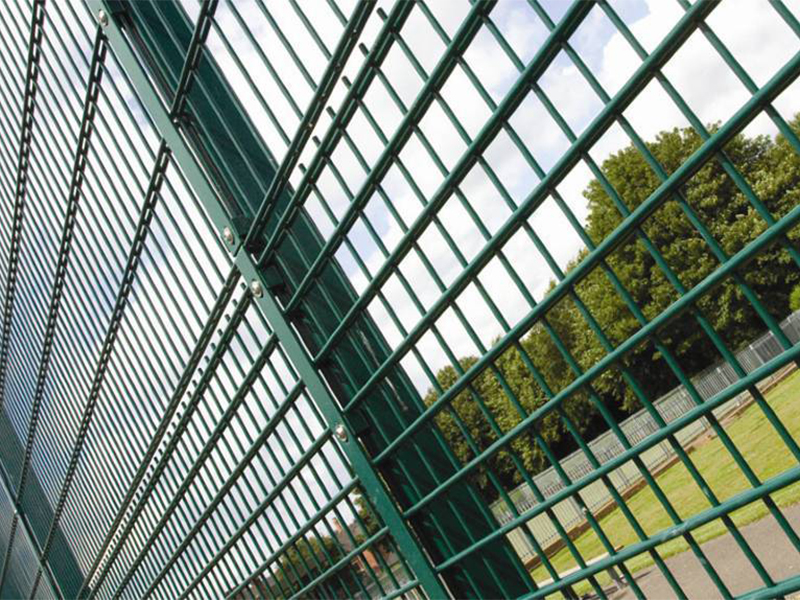

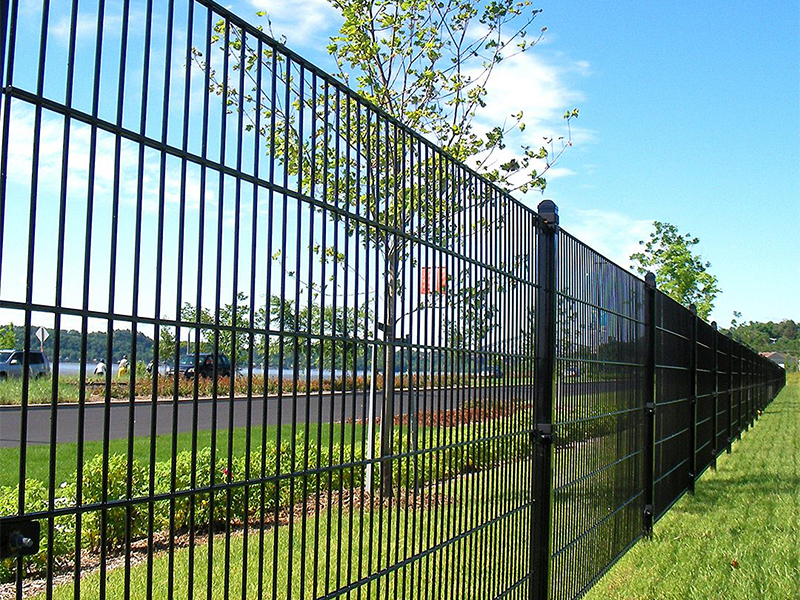

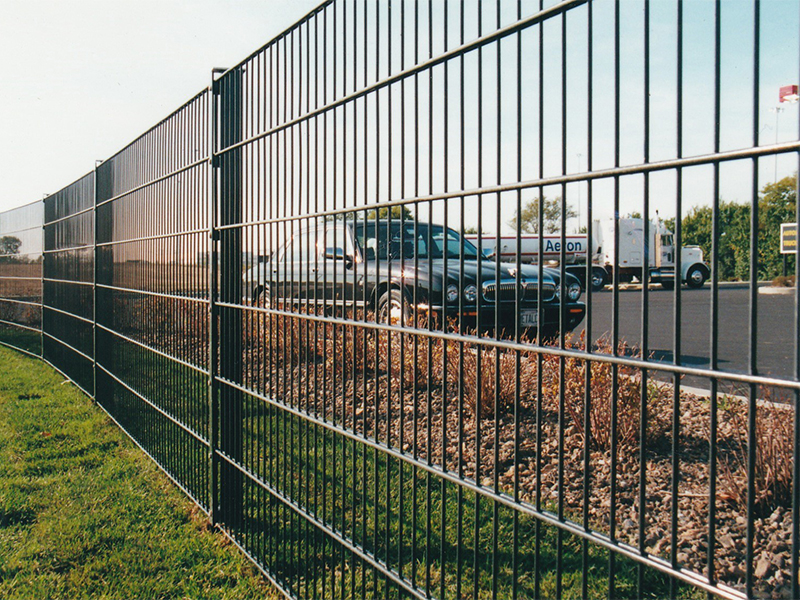

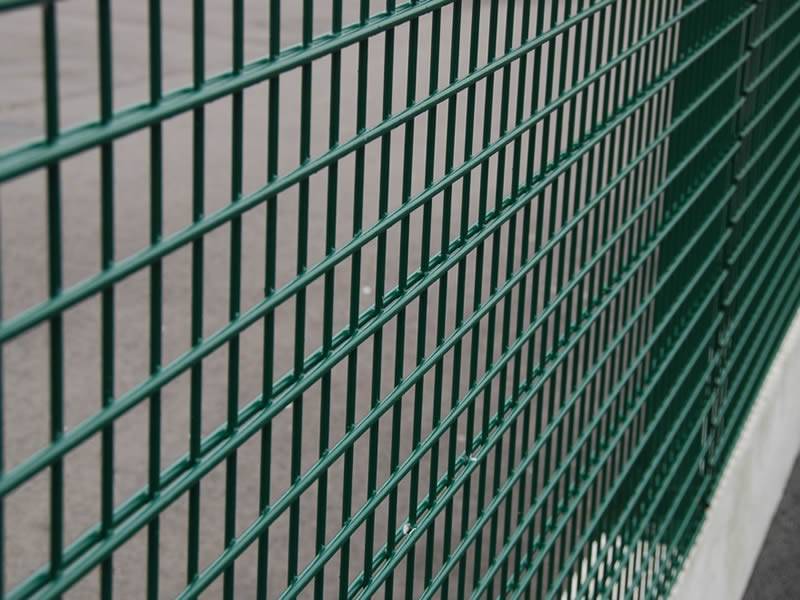

Jinkaiyi is a professional manufacturer of Double Wire Fence, also known as twin wire mesh fence. Made with two horizontal wires and one vertical wire, the system provides excellent rigidity, durability, and an attractive appearance. Double Wire Fence is suitable for flat, sloped, or winding terrain, and is widely used in residential, industrial, and public security projects.

Material and Surface Treatment

The panels are manufactured from high-quality iron rods, welded and then hot-dip galvanized. A powder primer and powder top coat of 100–120 microns is applied, ensuring strong resistance to corrosion and UV radiation. Finishes are available in multiple colors such as green, black, or gray to match project needs.

Panel Dimensions

Standard panel size is 2500 mm width × 200 mm height mesh opening, with heights ranging from 630 mm to 2430 mm. Wire diameter options include 6/5/6 mm and 8/6/8 mm, ensuring both medium-duty and heavy-duty security.

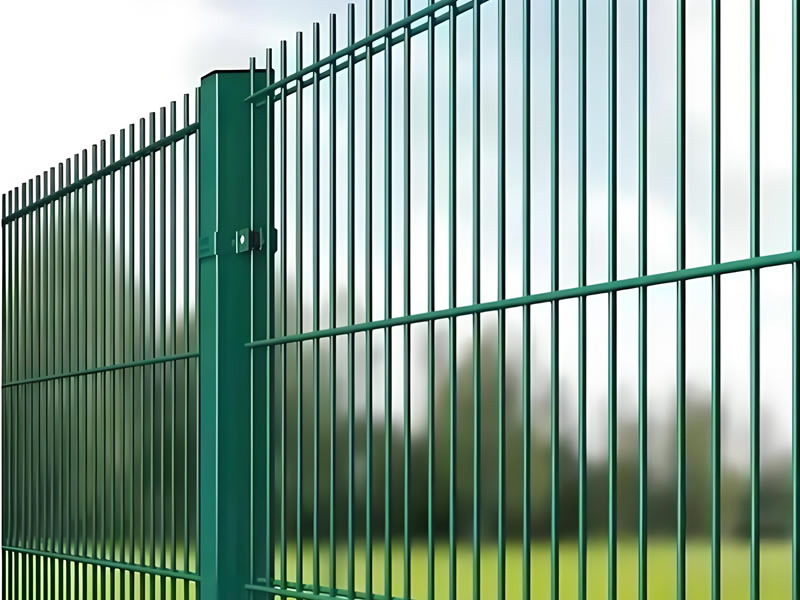

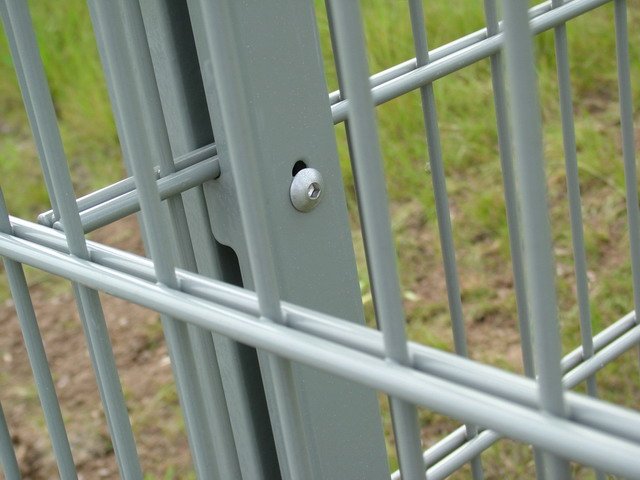

Post Specifications

Double Wire Fence posts are available in:

• Square posts: 50 × 50 mm, 60 × 60 mm

• Rectangular posts: 80 × 60 × 2.5 mm, 120 × 60 × 3 mm
  Each post is finished with galvanization and powder coating and fitted with plastic caps or rain hats for protection.

Installation Features

• Installed sequentially without special fixing parts, saving time and labor

• Compatible with gates and accessories for a complete fencing system

• 10-year anti-corrosion guarantee under normal conditions

• Option to add barbed wire or razor wire for enhanced security

Applications

• Airports, military bases, and highways for perimeter protection

• Factories, warehouses, and construction sites for safety barriers

• Parks, schools, gardens, and sports fields for boundary fencing

• Agriculture and horticulture as livestock enclosures and plant protection

• Public infrastructure such as bridges, tunnels, and wharfs for reinforcement

Advantages

• Strong grid structure with modern appearance

• High rigidity and long service life

• Resistant to corrosion, weather, and UV rays

• Multiple height and color options available

• Suitable for heavy public usage and high-security areas
