Galvanized Welded Wire Mesh

Galvanized Welded Wire Mesh is a strong and versatile material made by welding low-carbon steel wires and applying a zinc coating for long-lasting corrosion resistance. Classified into electro-galvanized welded mesh and hot-dip galvanized welded mesh, it offers different levels of durability to meet project requirements. With mesh openings from 25 × 25 mm to 100 × 100 mm and wire diameters 1.0–6.0 mm, Galvanized Welded Wire Mesh is widely used in construction reinforcement, fencing, animal enclosures, industrial partitions, mining, and agriculture. Its flat surface, firm welding, and rust resistance ensure reliable performance in various environments....

Jinkaiyi is a professional manufacturer of Galvanized Welded Wire Mesh, available in both electro-galvanized and hot-dip galvanized finishes. The zinc coating provides excellent corrosion resistance compared to plain welded mesh, making it suitable for long-term use in construction, fencing, and industrial applications. Supplied in both rolls and panels, Galvanized Welded Wire Mesh is widely used as fencing panels, partitions, wire baskets, poultry cages, and reinforcement mesh.

Material and Surface Treatment

The mesh is produced from low-carbon steel wire that is welded into square or rectangular openings and then coated with zinc through electro-galvanizing or hot-dip galvanizing. This process ensures strong weld points, rust resistance, and a smooth surface suitable for indoor and outdoor projects.

Mesh Opening Sizes

  • 50 × 75 mm (2" × 3")

  • 75 × 75 mm (3" × 3")

  • 50 × 100 mm (2" × 4")

  • 100 × 100 mm (4" × 4")

These mesh openings are ideal for fencing, cages, reinforcement, and industrial partitions.

Wire Diameter Range

Wire diameters typically range from 1.65 mm to 2.67 mm, with common gauges including BWG 14–16. Thinner wires are used for lightweight fencing, while thicker wires provide strength for reinforcement and heavy-duty applications.

Panel and Roll Dimensions

  • Standard roll length: 30 m

  • Roll width: 0.5 m – 1.8 m

  • Panel sizes: 1.0 × 2.0 m, 1.2 × 2.4 m, 1.5 × 3.0 m, 2.0 × 3.0 m
    Custom sizes are also available on request.

Applications

  • Construction: reinforcement brick mesh, welded gratings, sandwich wall construction

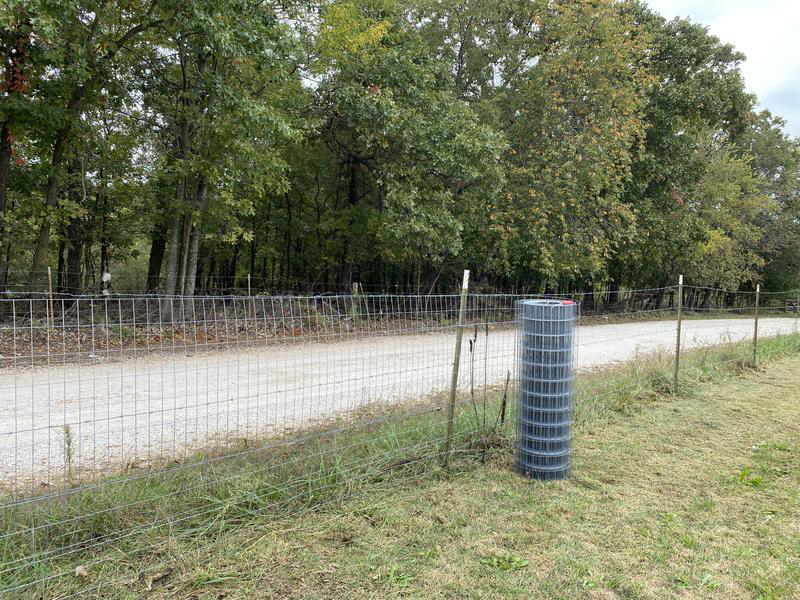

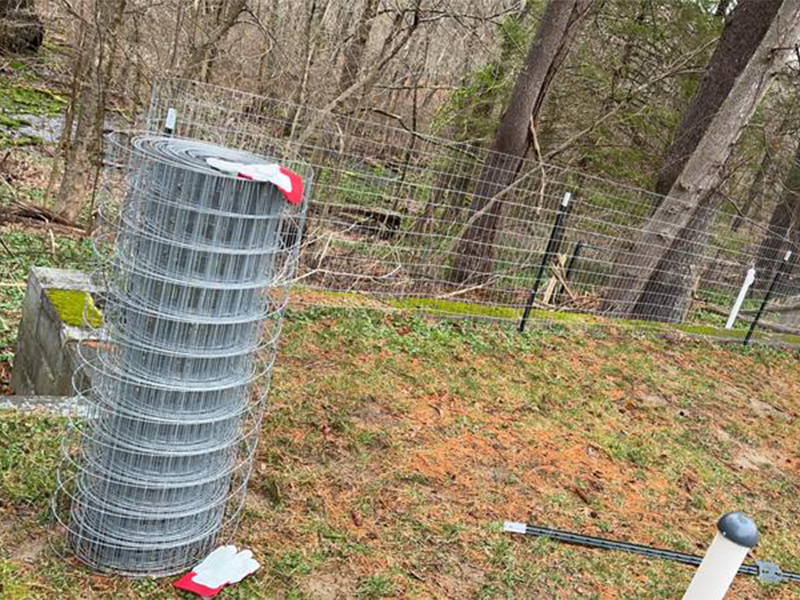

  • Fencing: residential gardens, sports fields, road barriers, and poultry enclosures

  • Industrial Use: machine protection, warehouse partitions, wire containers, baskets

  • Agriculture: livestock fencing, crop protection, and animal cages

Specification List of Galvanized Welded Wire Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 21,22,23,24,25,26,27
2.5/8" x 2.5/8" 7.94mmx7.94mm 20,21,22,23,24,25,26
3/8” x 3/8” 10.6mm x 10.6mm 19,20,21,22,23,24,25
1/2” x 1/2” 12.7mm x 12.7mm 16,17,18,19,20,21,22,23,24,25,26,27
5/8” x 5/8” 15.875mm x 15.875mm 16,17,18,19,20,21,22,23,24,25
3/4” x 3/4” 19.1mm x 19.1mm 14,15,16,17,18,19,20,21,22,23,24,25
6/7” x 6/7” 21.8x21.8mm 14,15,16,17,18,19,20,21,22,23,24,25
1" x 1/2" 25.4mm x 12.7mm 14,15,16,17,18,19,20,21,22,23,24
1" x 1" 25.4mmX25.4mm 14,15,16,17,18,19,20,21,22,23
1-1/4" x 1-1/4" 31.75mmx31.75mm 14,15,16,17,18,19,20,21,22,23
1-1/2" x 1-1/2" 38mm x 38mm 13,14,15,16,17,18,19,20,21
2" x 1" 50.8mm x 25..4mm 13,14,15,16,17,18,19,20,21
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.1m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
