Welded Wire Mesh

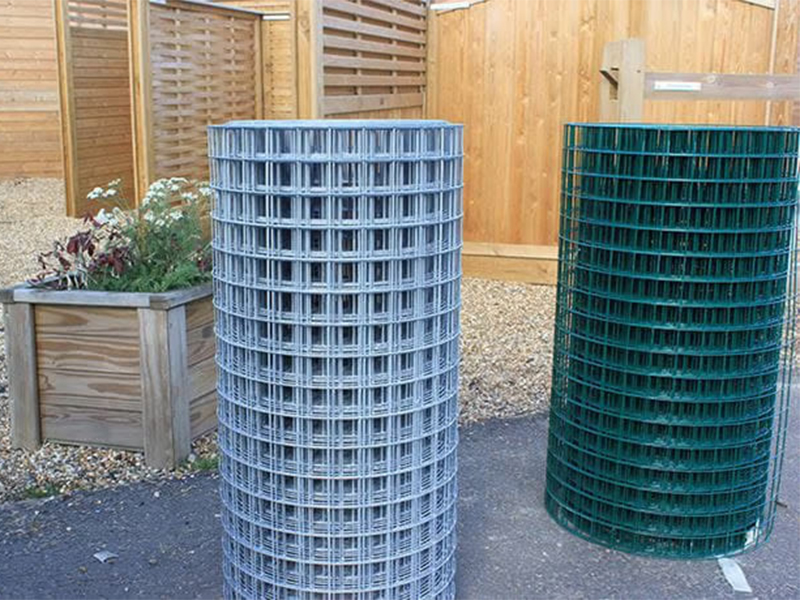

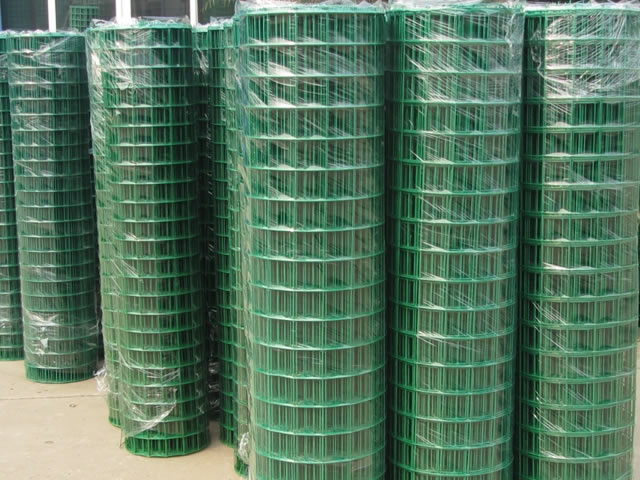

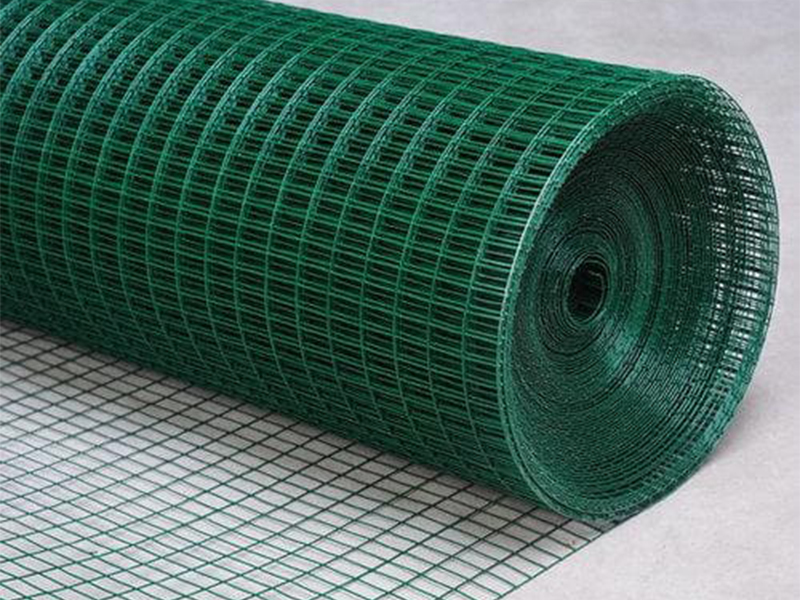

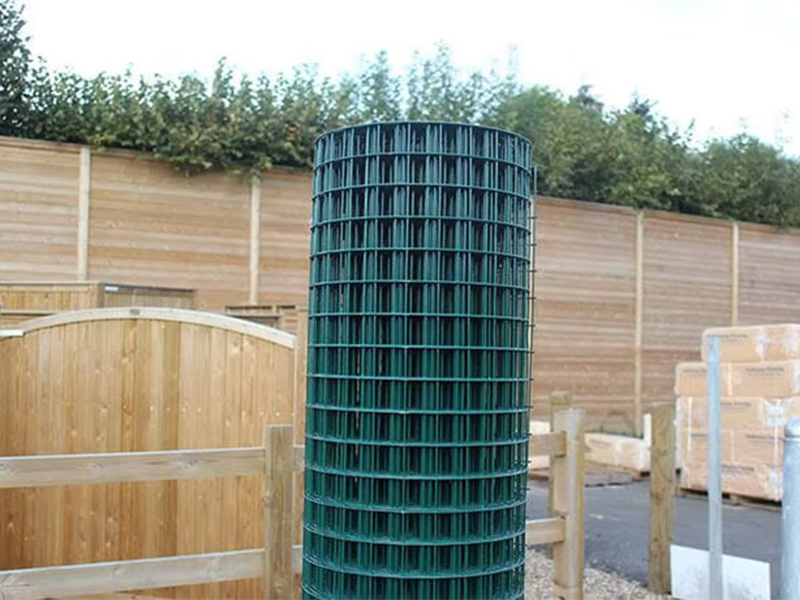

Jinkaiyi is a professional manufacturer of PVC Coated Welded Mesh, designed with galvanized or low-carbon steel wire and finished with a strong PVC coating. The plastic layer is bonded to the wire through advanced heat and adhesive processes, creating double protection against rust, corrosion, and weather. Available in both rolls and panels, PVC Coated Welded Mesh is widely applied in residential, commercial, agricultural, and industrial fencing projects.

Material Composition

PVC Coated Welded Mesh is produced from low-carbon steel wire, hot-dip galvanized wire, or electro-galvanized wire. The underlying zinc layer provides primary corrosion resistance, while the PVC coating ensures durability, smoothness, and long service life.

Colors Available

Standard colors include green, black, white, blue, and yellow, with customization available upon request. Green (RAL6005) is the most commonly used for gardens, parks, and landscape fencing.

Mesh Opening Sizes

PVC Coated Welded Mesh comes in a variety of mesh openings6.4 mm (1/4"),9.5 mm (3/8") , 12.7 mm (1/2"), 19.1 mm (3/4") ,25.4 mm (1"),38.1 mm (1 1/2"),50.8 mm (2"),76.2 mm (3"),101.6 mm (4")

Special rectangular sizes like 25.4 × 12.7 mm (1 × 1/2") and 25.4 × 50.8 mm (1 × 2") are also available.

Wire Diameter Range

The wire diameter varies depending on coating:

• Before coating: 0.56 mm – 4.00 mm

• After coating: 0.90 mm – 4.88 mm

This ensures both light-duty and heavy-duty fencing options.

Panel and Roll Dimensions

• Roll length: 15 m, 20 m, or 30 m

• Roll height: 0.5 m – 2.5 m

• Panel size: 1.0 × 2.0 m, 1.2 × 2.4 m, 1.5 × 3.0 m, 2.0 × 3.0 m

Custom dimensions are available based on project requirements.

Applications

• Residential & Civil Use: gardens, parks, and property fencing

• Agriculture: livestock enclosures, poultry cages, and crop protection

• Industry: machinery guards, ventilation covers, storage cages

• Sports Facilities: fencing for tennis courts, football fields, and playgrounds

• Construction: wall reinforcement, slope protection, and safety barriers

Advantages

• Double protection with zinc coating and PVC covering

• High corrosion and rust resistance

• Smooth surface with attractive appearance

• Available in multiple sizes and colors

• Easy to install, flexible for both temporary and permanent projects
