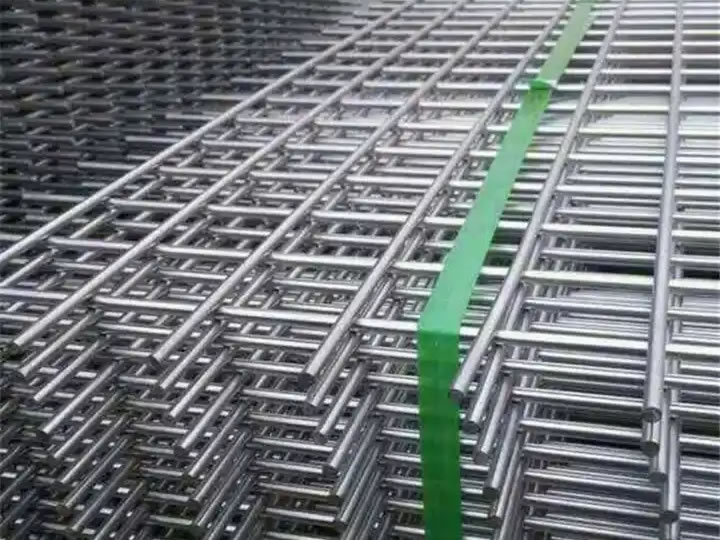

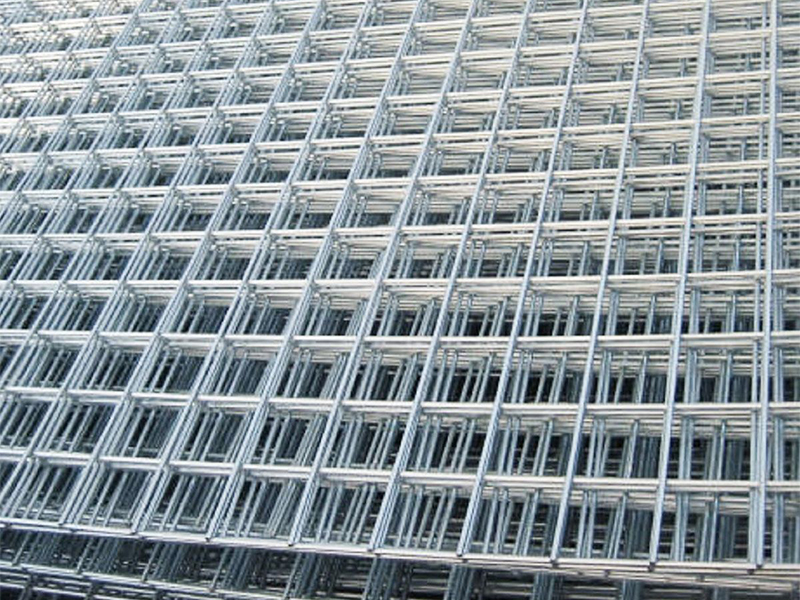

Welded Wire Mesh

Jinkaiyi is a professional manufacturer of Welded Wire Mesh Panel products, designed with a flat surface, uniform mesh, and firm welded structure. These panels are durable, corrosion-resistant, and widely used in construction, agriculture, industry, mining, and decorative projects. With strong bonding performance in reinforced concrete, Welded Wire Mesh Panel is an ideal material for structural applications.

Material Options

Welded Wire Mesh Panel is manufactured using low-carbon steel wire, stainless steel wire, and rebar wire. Different materials allow customers to choose according to strength and corrosion-resistance requirements.

Surface Treatments

The panels are available in several finishes:

• Electro-galvanized welded wire mesh panel

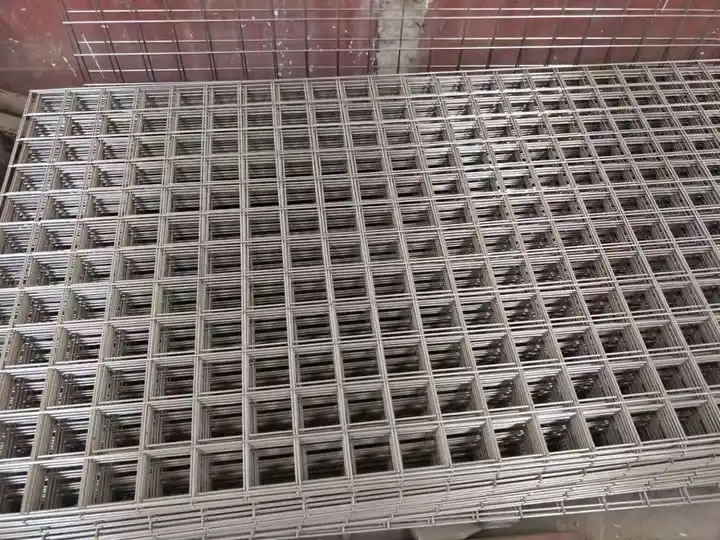

• Hot-dip galvanized welded wire mesh panel

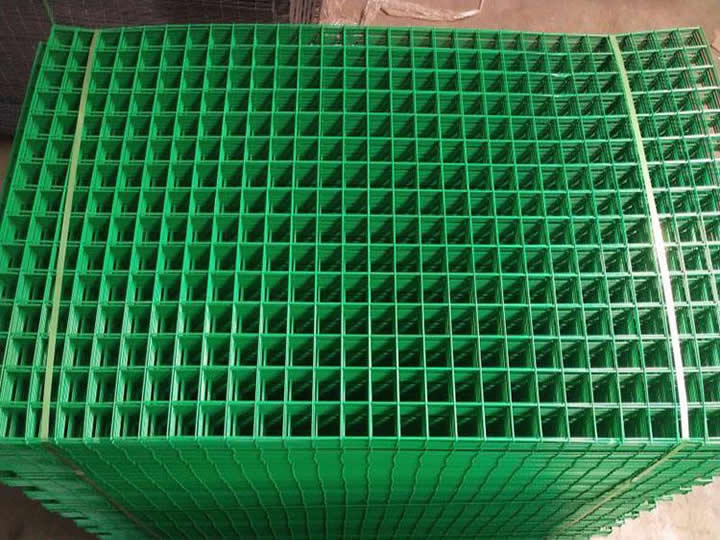

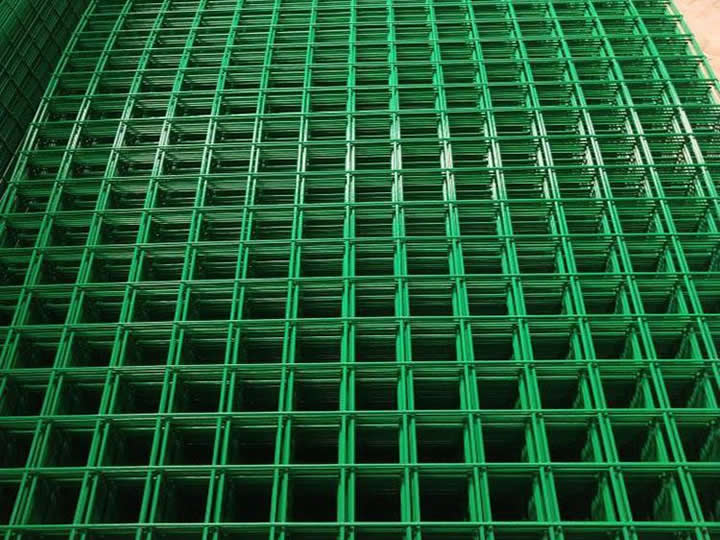

• PVC-coated welded wire mesh panel in green, blue, yellow, white

• Stainless steel welded wire mesh panel for maximum durability

Mesh Opening Sizes

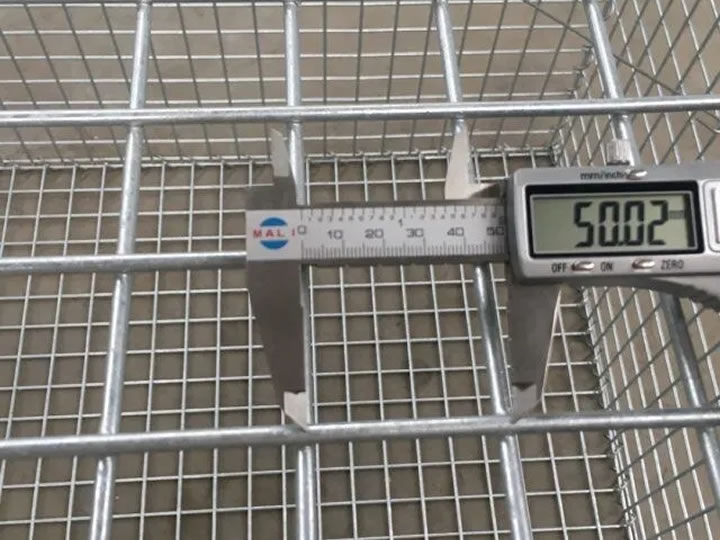

Common mesh opening sizes include 25 × 25 mm, 50 × 50 mm, 75 × 75 mm, and 100 × 100 mm, with precise square or rectangular patterns for different applications.

Wire Diameter Range

The standard wire thickness ranges from 2.0 mm to 6.0 mm, providing both light-duty and heavy-duty options for construction and fencing projects.

Panel Dimensions

Welded Wire Mesh Panel is available in panel sizes of 1.0 m × 2.0 m, 1.2 m × 2.4 m, 1.5 m × 3.0 m, and 2.0 m × 3.0 m. Custom sizes are also available upon request.

Applications

• Construction: reinforced concrete, floor slabs, wall reinforcement

• Fencing: machine protection, boundary fences, highway and railway safety barriers

• Agriculture: livestock enclosures, poultry cages, crop and tree protection

• Industry: equipment separation, mine sieving, transportation storage baskets

• Decorative uses: architectural partitions, window guards, and garden fencing
