Barbed Wire

Jinkaiyi is a professional manufacturer of Razor Barbed Wire, also known as barbed tape or concertina wire. Made from galvanized or stainless steel, Razor Barbed Wire features sharp blades fixed to a central steel core designed to deter intrusion. Stronger and more effective than standard barbed wire, it offers both a physical and psychological barrier, making it one of the most reliable high-security fencing solutions.

Types of Razor Barbed Wire

We provide several classifications to meet different security requirements:

• Single Coil Razor Barbed Wire

• Concertina Razor Wire (cross type with clips)

• Triple Strand Razor Wire

• Welded Razor Wire Mesh

• Rapid Deployment Razor Wire System

Blade Specifications

Common blade types include BTO (Barbed Tape Obstacle) and CBT (Concertina Barbed Tape), with the following sizes:

• BTO-12: 12 mm barb length, 26 mm spacing

• BTO-22: 22 mm barb length, 34 mm spacing

• BTO-30: 30 mm barb length, 45 mm spacing

• CBT-60: 60 mm barb length, 100 mm spacing

• CBT-65: 65 mm barb length, 100 mm spacing

Wire diameter is typically 2.5 mm, with blade thickness 0.5–0.6 mm.

Coil Sizes and Lengths

Razor Barbed Wire is supplied in coil diameters of 450 mm, 500 mm, 600 mm, 700 mm, 800 mm, and 960 mm.

• Single Coil: 8–13 m per coil (depending on diameter)

• Cross Type: 9–16 m per coil (depending on diameter and number of loops)

Features of Razor Barbed Wire

• Strong deterrence with sharp blades

• Corrosion resistance and long service life

• Easy and fast installation in coils or mesh form

• Effective psychological and physical barrier

• Suitable for permanent and temporary fencing

Applications

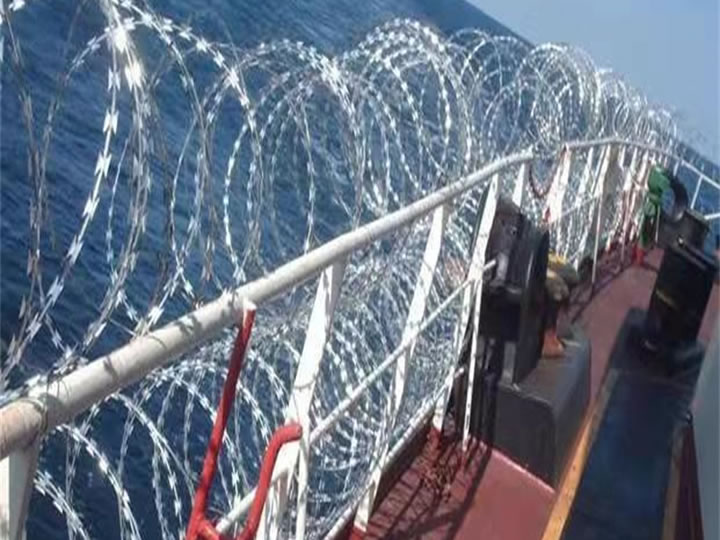

Razor Barbed Wire is widely used for military facilities, prisons, detention centers, border security, and government buildings. It is also installed in factories, warehouses, villas, residential perimeters, highways, railways, and airport fencing where high security is required.
