358 Anti-Climb Fence

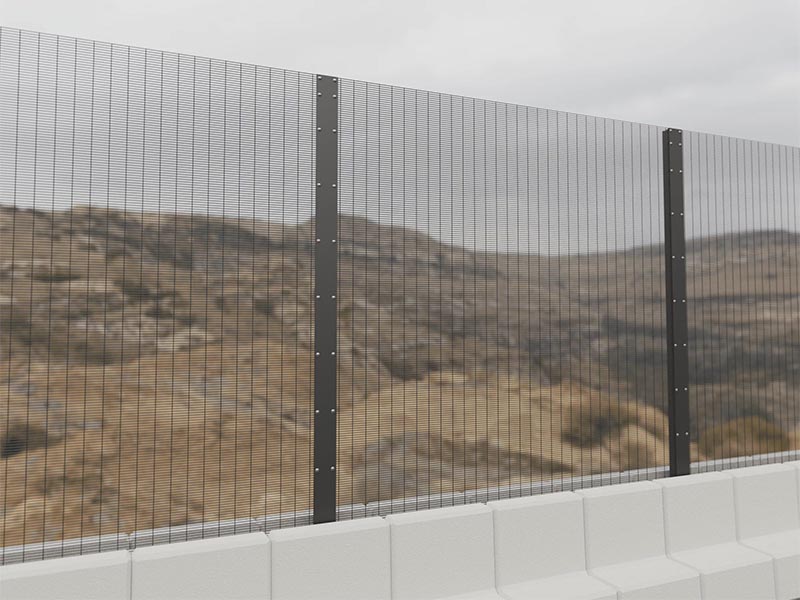

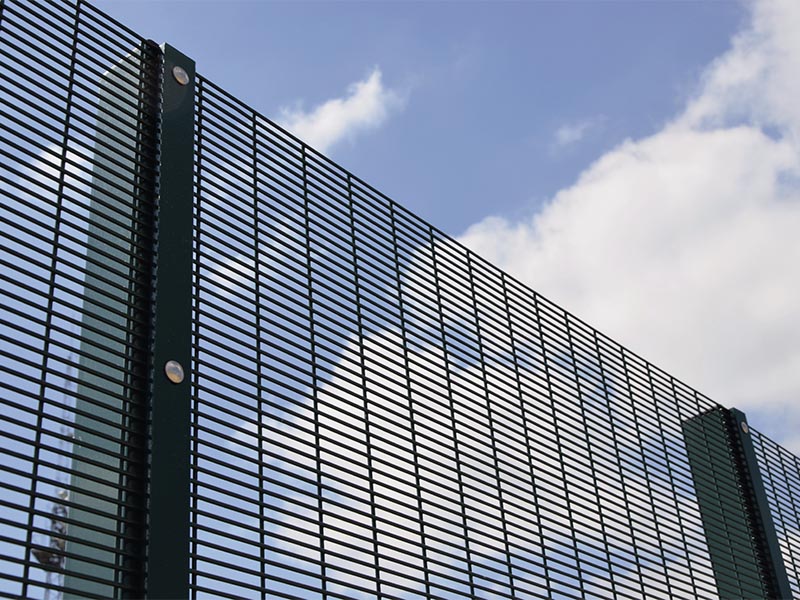

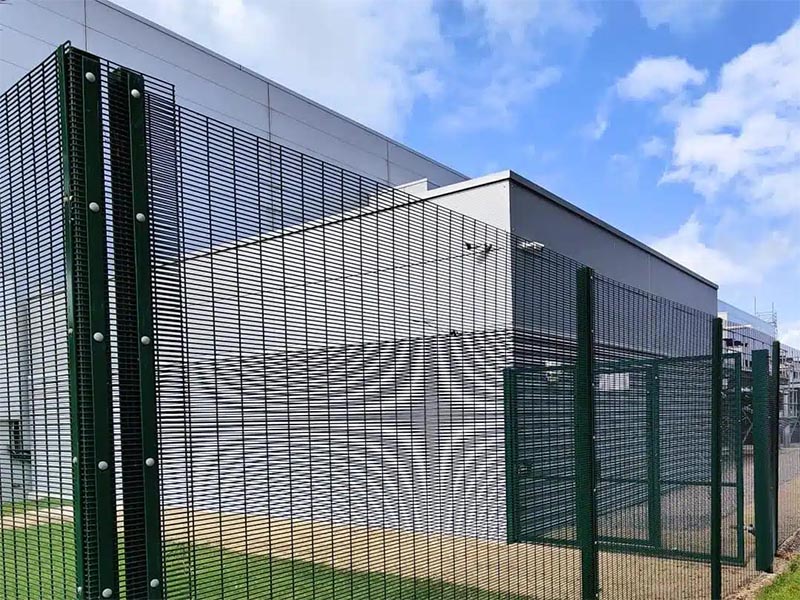

358 Anti-Climb Fence, also known as prison mesh fence, is a high-security fencing system made of welded steel wire mesh with very small apertures of 76.2 × 12.7 mm and wire diameter of 4.0 mm, preventing climbing and cutting attempts. Classified into galvanized 358 fence, PVC-coated 358 fence, and powder-coated 358 fence, it offers excellent corrosion resistance and durability. With panel heights up to 2.4–6.0 m, 358 Anti-Climb Fence is widely used in prisons, airports, military bases, power stations, railways, borders, and government facilities, providing maximum perimeter protection and long service life....

Jinkaiyi is a professional manufacturer of 358 Anti-Climb Fence, also called prison mesh fence or security mesh. Known for its small mesh aperture of 76.2 × 12.7 mm and wire diameter of 3–5 mm, 358 Anti-Climb Fence provides superior protection against intrusion. Its rigid structure makes climbing and cutting extremely difficult, making it one of the most secure fencing systems for high-risk areas.

Material and Surface Treatment

The fence is made from low-carbon steel wire or galvanized wire with finishing options including electro-galvanizing, hot-dip galvanizing, polyester powder coating, or PVC coating. Standard colors are green (RAL6005), black (RAL9005), blue, white, yellow, and red, with custom RAL options available.

Mesh Panel Specifications

  • Height: 1.8 m – 3.0 m (custom up to 6.0 m for maximum security)

  • Width: 2.0 m, 2.2 m, 2.5 m, 3.0 m

  • Mesh Opening: 12.7 × 76.2 mm (½" × 3")

  • Wire Thickness: 3 mm, 4 mm, 5 mm

  • Curves: Optional for added strength or design

Post Specifications

  • C Post: 62 × 83 × 3 mm

  • Round Post: Ø 80 × 3 mm

  • Rectangular Post: 40 × 60 mm, 60 × 60 mm, 60 × 80 mm, 80 × 100 mm, 80 × 120 mm

  • Post Lengths: 2.3 m – 4.0 m

  • Accessories: flat bar and metal clips for secure installation

Features

  • Anti-Climb: small mesh size prevents footholds or handholds

  • Anti-Cut: strong welded joints resist bolt cutters and saws

  • Visibility: clear view for CCTV and surveillance monitoring

  • Durability: corrosion-resistant coating ensures long service life

  • System Integration: compatible with alarms, cameras, razor wire, or electric fencing

Applications

  • Prisons, detention centers, and psychiatric hospitals

  • Airports, seaports, and railway facilities

  • Power stations, substations, and water treatment plants

  • Military sites, government buildings, and border security

  • Industrial complexes and warehouses requiring maximum protection

Advantages

  • Provides a secure yet discreet barrier

  • Reduces installation costs with wider panels up to 3.05 m

  • High weld strength ensures structural stability

  • Effective deterrent for intruders in high-security zones

  • Long lifespan with minimal maintenance

Table-1: 358 Mesh Fence Specifications
Fence height (m) Panel size
(Height × Width) (mm)		 Fence Post
(Height × Size × Thick)
(mm)		 Clamp Bar
(Height × Width × Thickness)
(mm)		 Middle or corner
Clamp No. (pcs)
2 2000 × 2515 2700 × 60 × 60 × 2.5 2000 × 60 × 5.00 7 or 14
2.4 2400 × 2515 3100 × 60 × 60 × 2.5 2400 × 60 × 5.00 9 or 18
3 3000 × 2515 3800 × 80 × 80 × 2.5 3000 × 80 × 6.00 11 or 22
3.3 3300 × 2515 4200 × 80 × 80 × 2.5 3300 × 80 × 6.00 12 or 24
3.6 3600 × 2515 4500 × 100 × 100 × 3.0 3600 × 100 × 7.00 13 or 26
4.2 4200 × 2515 5200 × 100 × 100 × 4.0 4200 × 100 × 8.00 15 or 30
4.5 4500 × 2515 5500 × 100 × 100 × 5.0 4500 × 100 × 8.00 16 or 32
5.2 5200 × 2515 6200 × 120 × 120 × 5.0 5200 × 100 × 8.00 18 or 36
